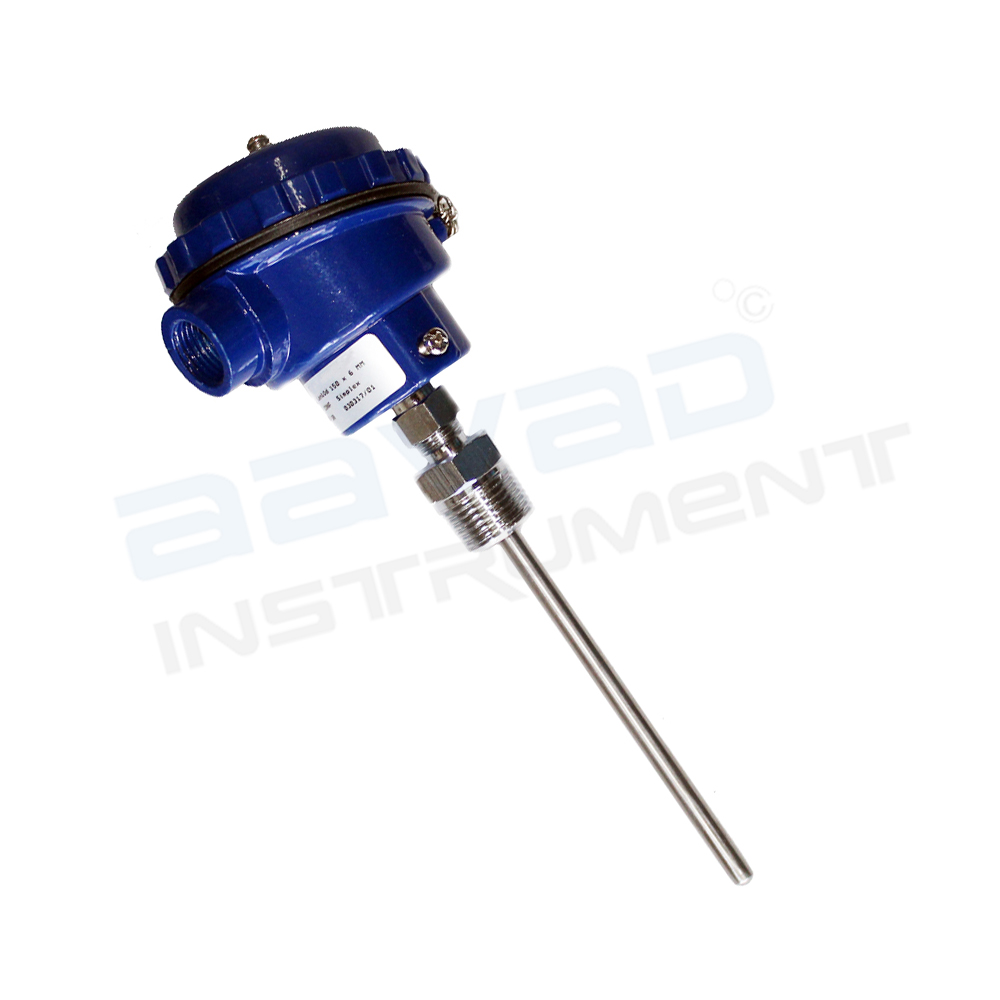

Temperature Thermocouple
Temperature Thermocouple
Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKWS |
| Configuration | Simplex |
| Total no. of wires | 2 |
| Accuracy | + /- 0.75 % |
| Temperature range | 0 to 600 degree c |
| Material of construction | SS 316 |
| Insulation | Compacted mgo insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) Adjustable |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | IP-65 |
| Head cable entry connection | 3/4″ ET |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Length | 1000 mm |
Description
- Thermocouples are used in applications that range from home appliances to industrial processes, to electric power generation, to furnace monitoring and control, to food and beverage processing, to automotive sensors, to aircraft engines, to rockets, satellites, and spacecraft.
