AKWD-I-1-1

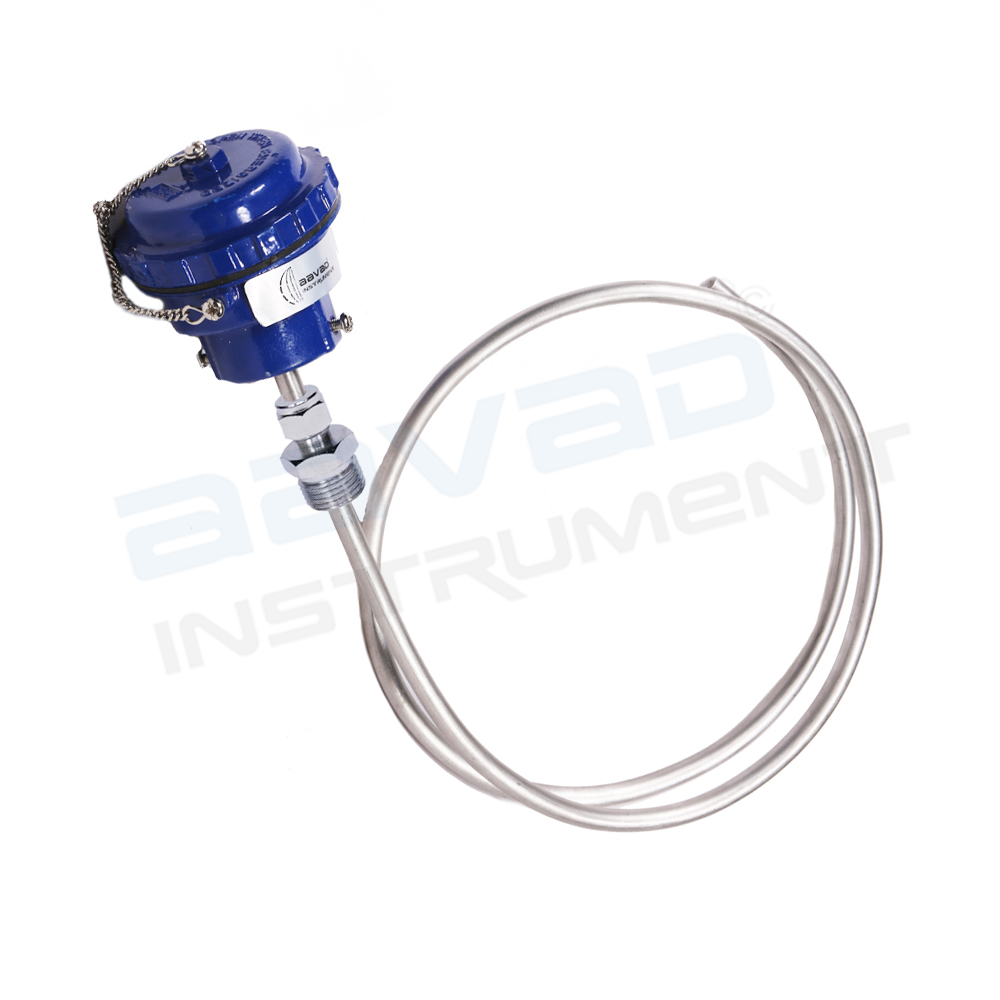

Thermocouple Mi Sensor
Thermocouple Mi Sensor
Thermocouple
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKWD |
| Configuration | Duplex |
| Temperature range | 0 To 650℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) adjustable |
| Protection head | Die-Cast aluminum head with threaded cap & chain |
| Head protection class | IP-65 |
| Head cable entry connection | ¾ “Et |
| No. of cable entry | Single |
| Terminal block | Nickel Plated ceramic terminal block |
| Od | 8 mm |
| Length | 2650 mm |
Description
- A MgO thermocouple consists of a thermocouple element encased in a metal sheath and hard-packed with magnesium oxide mineral insulation. Thermocouple sheaths are fully annealed and can be formed into different configurations (minimum bend radius is twice the outer diameter of the sheath).
