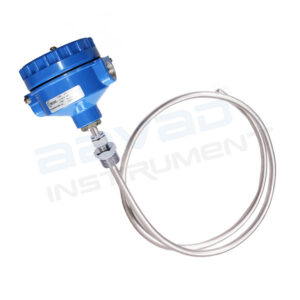

Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKIS-10 |
| Configuration | Simplex |
| Temperature range | 0 To 850℃ |
| Material of construction | SS 310 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) Adjustable |
| Protection head | Die-cast aluminum flameproof head with threaded cap & chain |
| Head protection class | IP-67 |
| Head cable entry connection | ¾ “Et |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Length | 1500 mm |
Description
- Thermocouple, also called thermal junction, thermoelectric thermometer, or thermel, a temperature-measuring device consisting of two wires of different metals joined at each end. One junction is placed where the temperature is to be measured, and the other is kept at a constant lower temperature.
