TW-F-TAP-1.5"

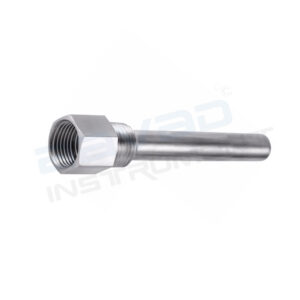

Threaded Bar Stock Thermowell – Socket Weld, Leakproof
Threaded Bar Stock Thermowell – Socket Weld, Leakproof

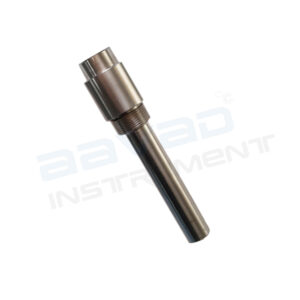

Barstock Thermowell
| Parameter | Specification |
|---|---|
| Type | Tw-F-Tap-1.5″ |
| Make | Aavad |
| Material | SS 316 |
| Temperature range | Up To 500° C |
| Head diameter | 33 mm |
| Instrument connection | 1/2 Npt (F) |
| Process connection | Flange |
| Flange | 1.5 “Rf 150 # |
| Flange moc | SS 316 |
| U Length | 200 mm |
| Tip outer diameter (Od) | 25 mm |
| Tapper Od | 16mm |
| Taper length | 100 mm |
| Inner diameter (Id) | 7 mm |
Description
- Tapered thermowells provide greater strength without sacrificing sensitivity. Because of its higher strength-to-weight ratio, the tapered thermowell provides greater resistance to high frequency vibrations than straight thermowell. This permits reliable operation at high fluid velocities.
