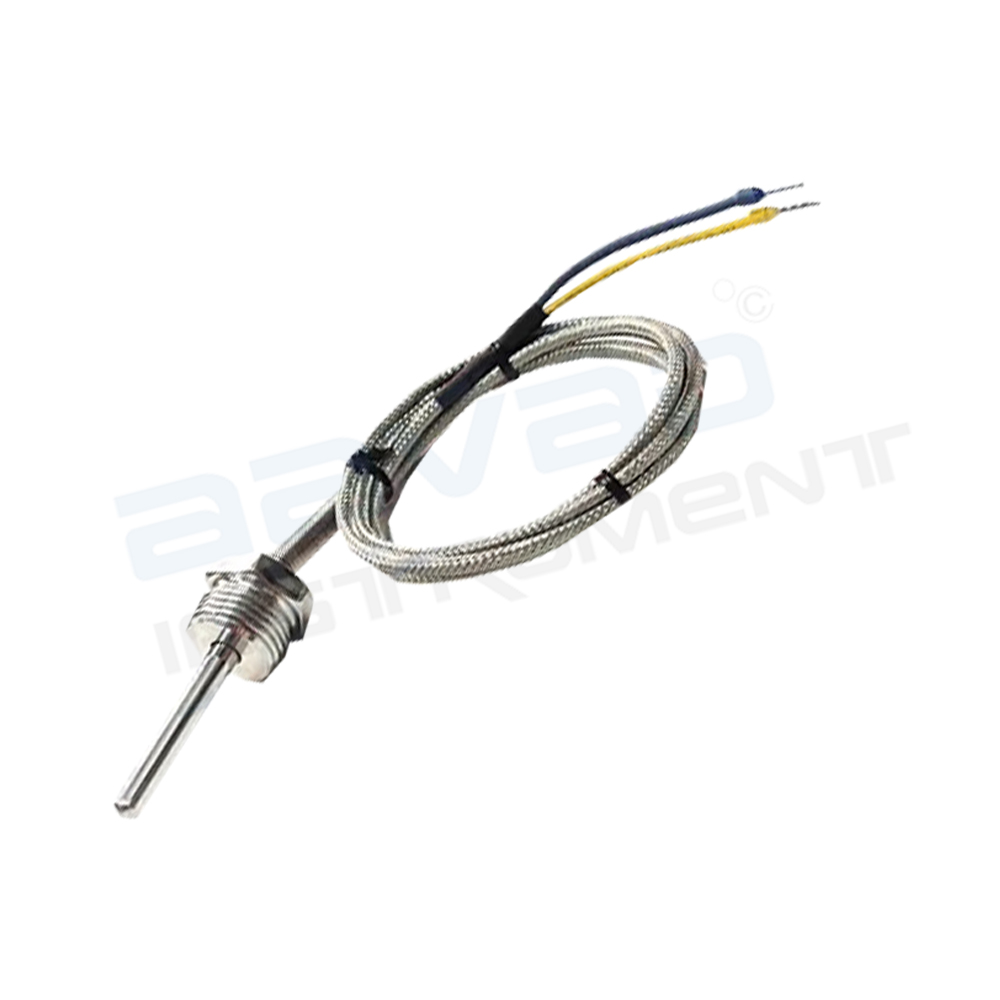

Threaded Thermocouple
Threaded Thermocouple
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES |
| Configuration | Simplex |
| Total no. of wires | 2 |
| Accuracy | + /- 0.75 % |
| Temperature range | 0 To 600 Degrees C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | 1/2″ BSP (M) Fix fitting |
| Cable length | 3 Meters |
| Cable insulation | FG/FG/SS |
| Od | 6 mm |
| Length below thread | 70 mm |
Description
Threaded thermocouple probes have a thread-mounted sensor for fixed-position installation on closed vessels like tanks or pipes. They are also used with thermowell and protection tubes and are available in various lengths depending on specific applications. They have a cable with bare lead wires or a conduit connection.
