APSS-6

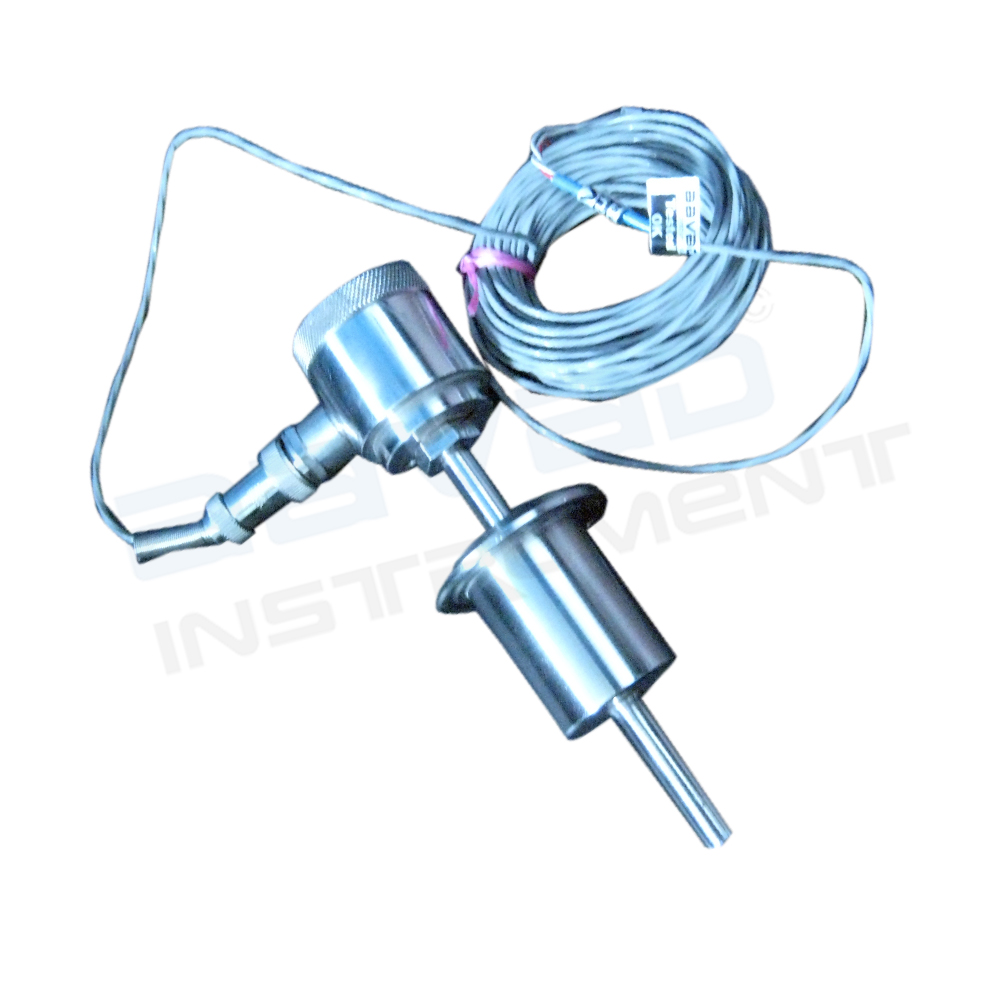

Triclover RTD Sensor
Triclover RTD Sensor
Tri clover Temperature Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APSS |
| Configuration | Simplex |
| No. of wire | 3 |
| Accuracy | Class B |
| Temperature range | -50 To 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Process connection size | Triclover |
| Protection head | Miniature SS Head |
| No. of cable entry | Single |
| Terminal block | Nickel Plated ceramic terminal block |
| Od | 6 mm |
| Length below tri clover | 100 mm |
Description
- Sanitary RTD sensors with tri clover connections and a head type terminations, are built for food, dairy, beverage, pharmaceutical and chemical industries. RTDs – or Resistance Temperature Detectors – are temperature sensors that contain a resistor that changes resistance value as its temperature changes.
