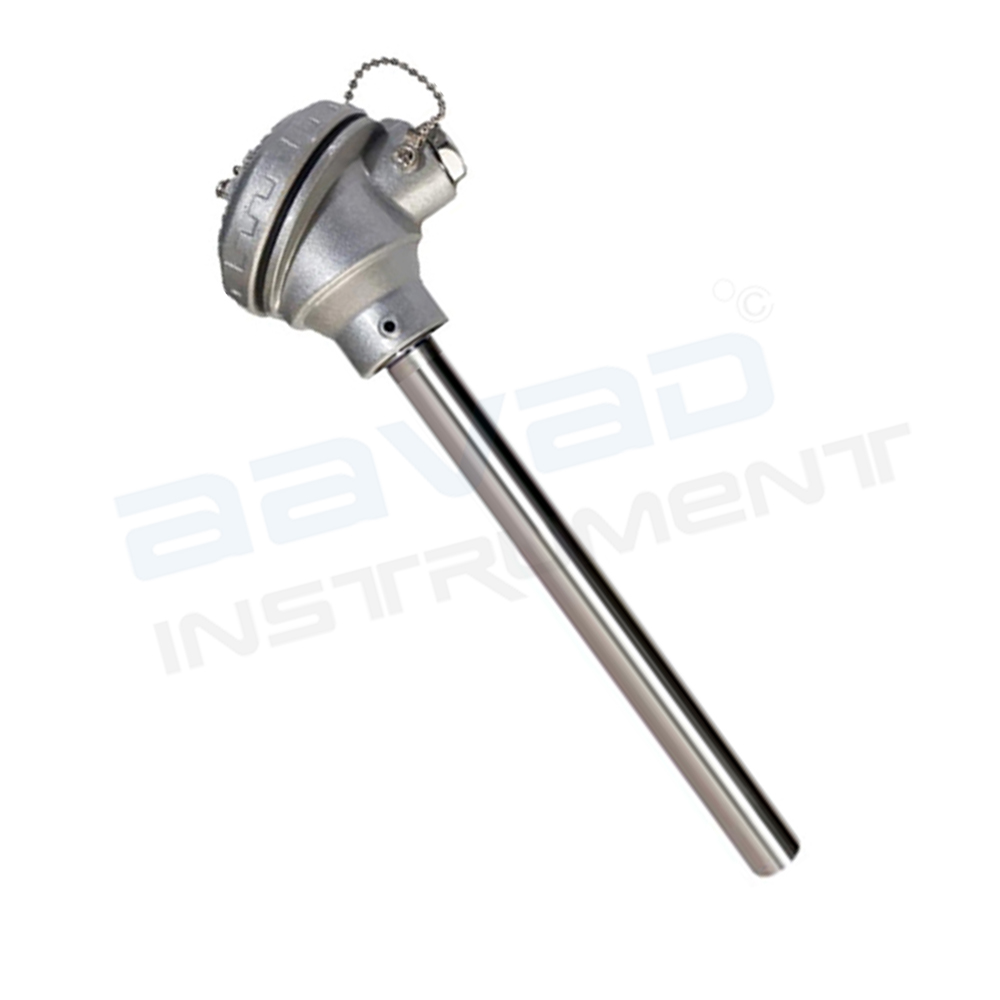

Type N Thermocouple
Type N Thermocouple
Italian Head Thermocouple
| Parameter | Specification |
|---|---|
| Type | N (Nicrosil/Nisil) |
| Make | Aavad |
| Model | ANIS |
| Configuration | Simplex |
| Total no. of wires | 2 |
| Temperature range | Up to 1200°C |
| Protection head | Die-cast aluminum Italian head with cap & chain |
| Head protection class | IP-67 |
| Head cable entry connection | 1/2” Npt |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Sheath moc | Inconel 601 |
| Od | 22 mm |
| Length below head | 1100 mm |
Description
- Type N is a relativity new thermocouple type that was made to be an alternative to Type K. It has high stability over time but is more costly than type K at similar temperature ranges. Its sensitivity is about 39 µV/°C, slightly lower compared to type K.
