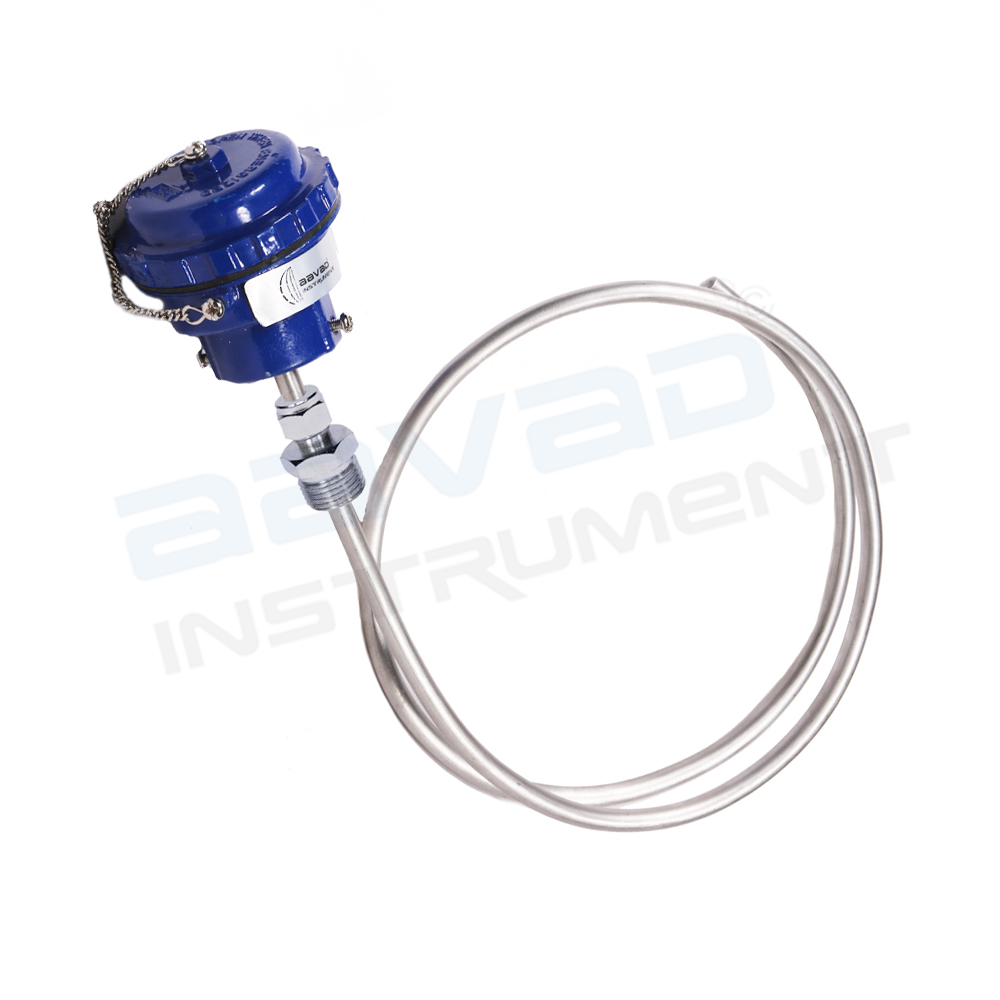

AKWD-I6D
Weatherproof K Type Thermocouple
Weatherproof K Type Thermocouple
Weatherproof Thermocouple Sensor
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKWD-I6D |
| Configuration | Duplex |
| Temperature range | 0 To 1000℃ |
| Material of construction | Inconel 600 |
| Insulation | Compacted MgO insulation |
| Process connection | BSP |
| Process connection size | 1/2 ” (M) adjustable |
| Protection head | Die-Cast aluminum head with threaded cap & chain |
| Head protection class | Ip-65 |
| Head cable entry connection | ¾ “Et |
| No. of cable entry | Single |
| Terminal block | Nickel Plated ceramic terminal block |
| Od | 6 mm |
| Length | 1050 mm |
Description
- K-Type thermocouples are inexpensive, small, dependable, and have fast reaction times. They can measure a wide range of temperatures from -270°C to 1,372°C with a small degree of error. Typically K-type thermocouples are used in temperatures above 540°C and in oxidizing atmospheres.
