Wika Pressure Transmitters A-10
Wika Pressure Transmitters A-10

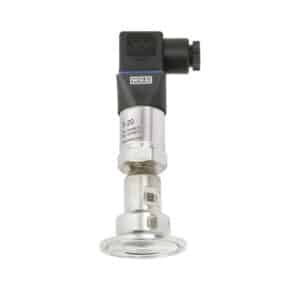

Pressure Transmitter
| Parameter | Specification |
|---|---|
| Model | A-10 |
| Make | Wika |
| Output | 4-20mA |
| Wiring | 2-Wire |
| Power Supply | 8-30 VDC |
| Accuracy | 0.5% of BSFL |
| Zero Adjustment | None |
| Span Adjustment | None |
| Electrical Connector | Valve connector size A |
| Process Connection | 1/4″ BSP (M) |
| Body & Wetted parts | SS 316 |
| Case Protection | IP65 |
| Medium Temperature | 0… + 80°C |
Description
The field-proven model A-10 pressure transmitter (pressure sensor) is the all-rounder for pressure measurement in industrial environments. Compactly built, it can be integrated in to a wide range of machine designs. The many measuring ranges, and special measuring ranges, contribute to its universal applicability.
