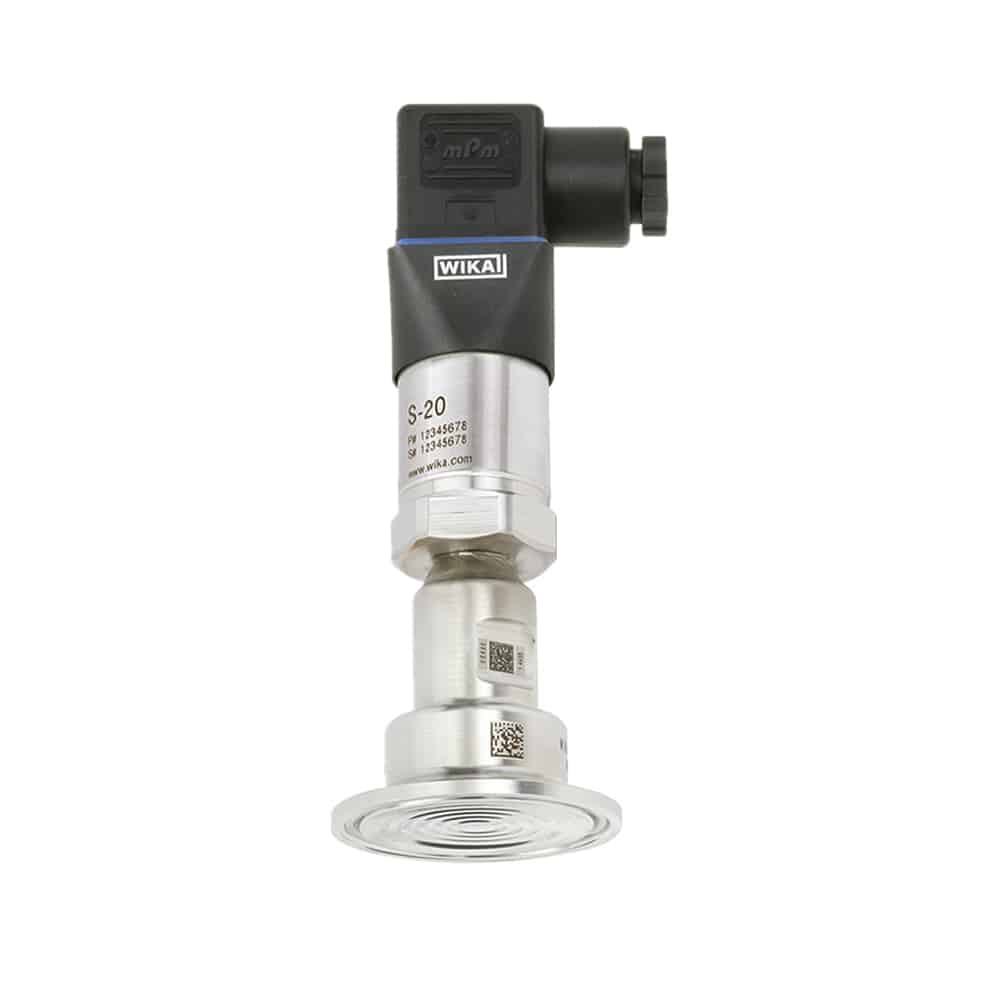

WIKA Tri-Clamp Seal with Pressure Transmitter
WIKA Tri-Clamp Seal with Pressure Transmitter
Tri-Clamp Seal with Pressure Transmitter
| Parameter | Specification |
|---|---|
| Model | S-20 + 990.22 |
| Make | Wika |
| Output | 4-20mA |
| Wiring | Two Wire |
| Power Supply | 14-30 VDC |
| Accuracy | 0.25% of BSFL |
| Zero Adjustment | Yes |
| Electrical Connector | Plug as per DIN 175301-803A |
| Process Connection | 1-1/2" |
| Wetted parts | SS 316L |
| Medium Temperature | -30… + 100°C |
| Fill Fluid | System fill fluid KN 59 (FDA)……(-35/ + 260°C) |
Description
This pressure transmitter with 4-20mA output and a flush diaphragm seal is for use with a 2” hygienic Tri-Clamp fitting. The diaphragm seal separates the instrument and the medium, the pressure is transmitted to the gauge via the system fill fluid which is inside the diaphragm seal assembly.
